MRW150 2 LED Multi Flasher

Features

The unit has 5 different flashing patterns

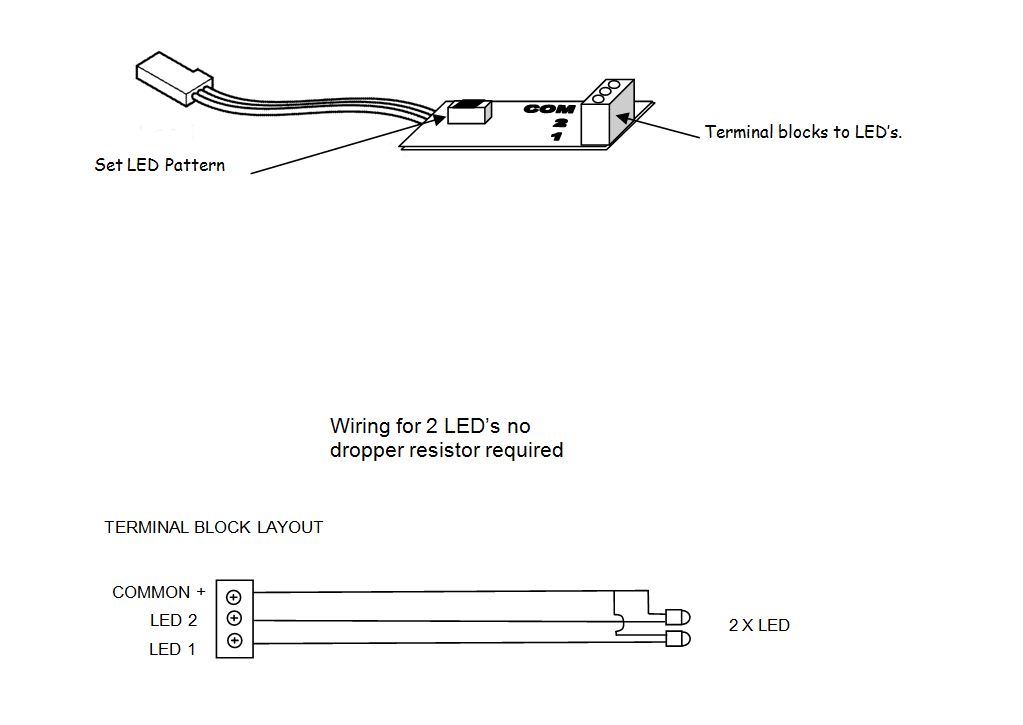

Inbuilt dropper resistors for LED’s

Instructions

Plug the flying lead on the Multi Flasher into the selected channel on your receiver.  Switch on the transmitter and then the receiver.

Set-up

With receiver switched off press and hold the button down, and then still holding the button down switch your receiver on.

The on board LED will flash once a second each flash represents a different flash sequence of the two LED’s, let go of the button when you reach the pattern you want.

1 Both LED’s flashing together at 1 second rate

2 Both LED’s flashing together at ½ second rate

3 One LED then the other Standard WigWag pattern at 1 second rate

4 One LED then the other Standard Wigwag pattern at ½ second rate

5 One LED flashes 3 times and then the other flashes 3 times at ½ second rate.

The unit remembers the setting and will be retained.
